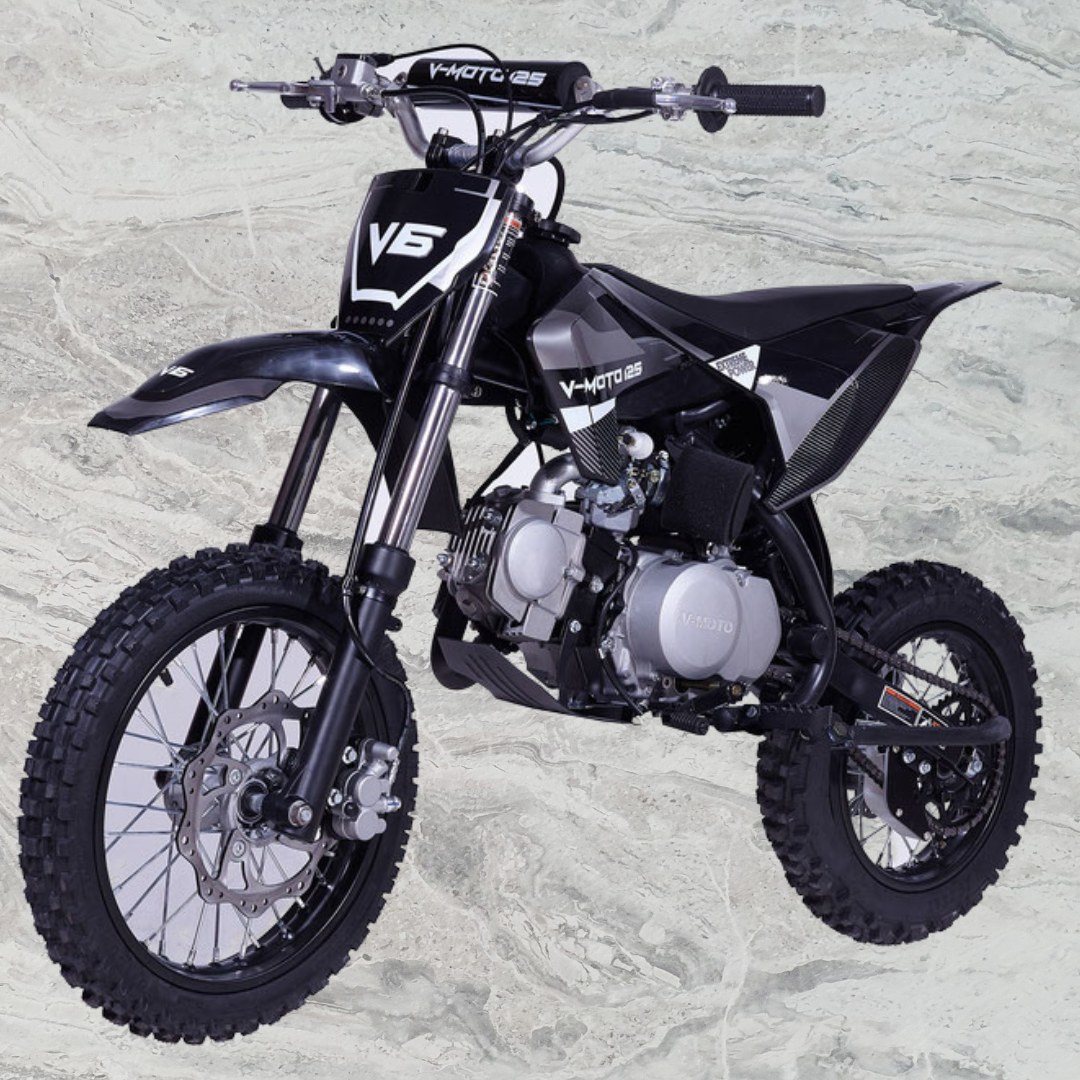

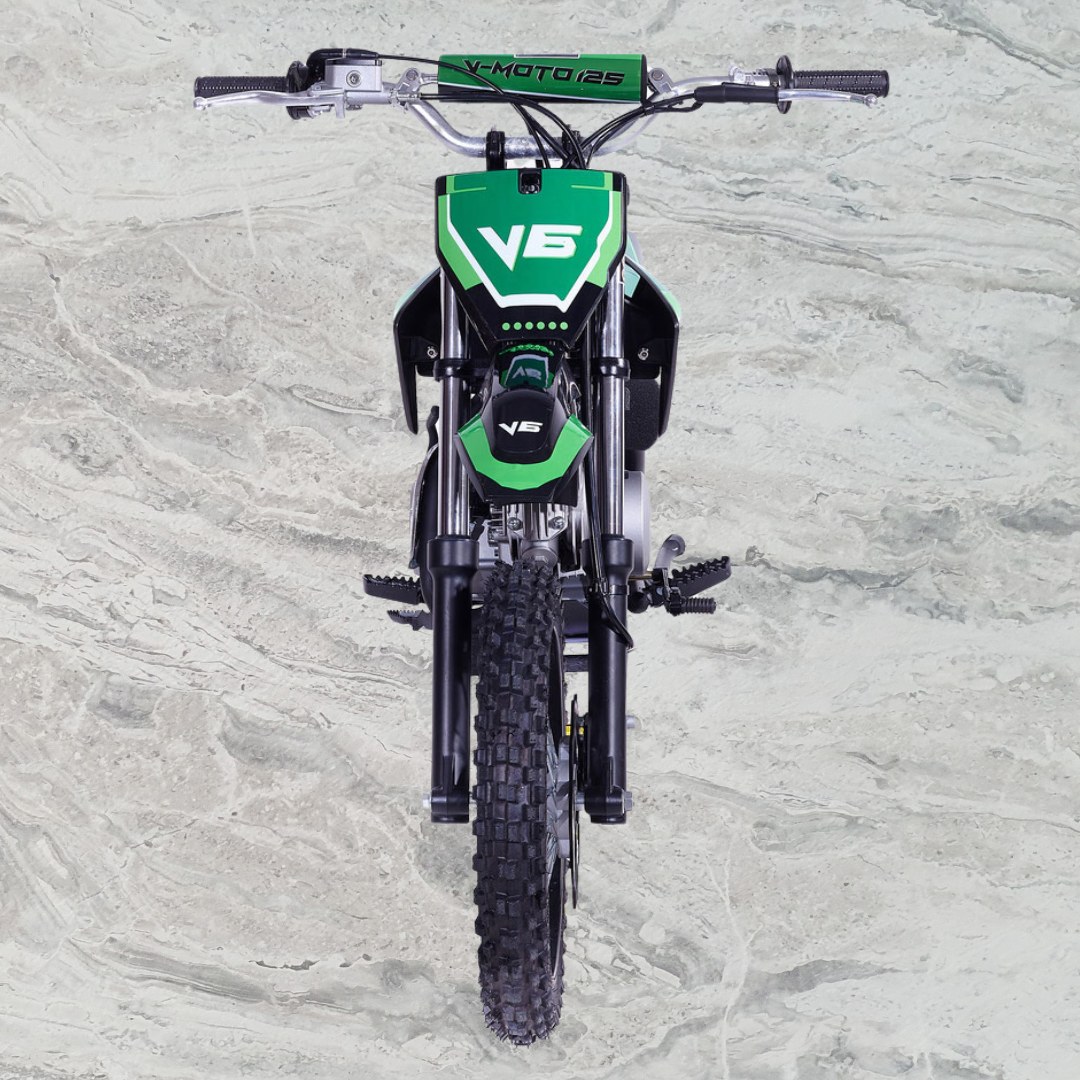

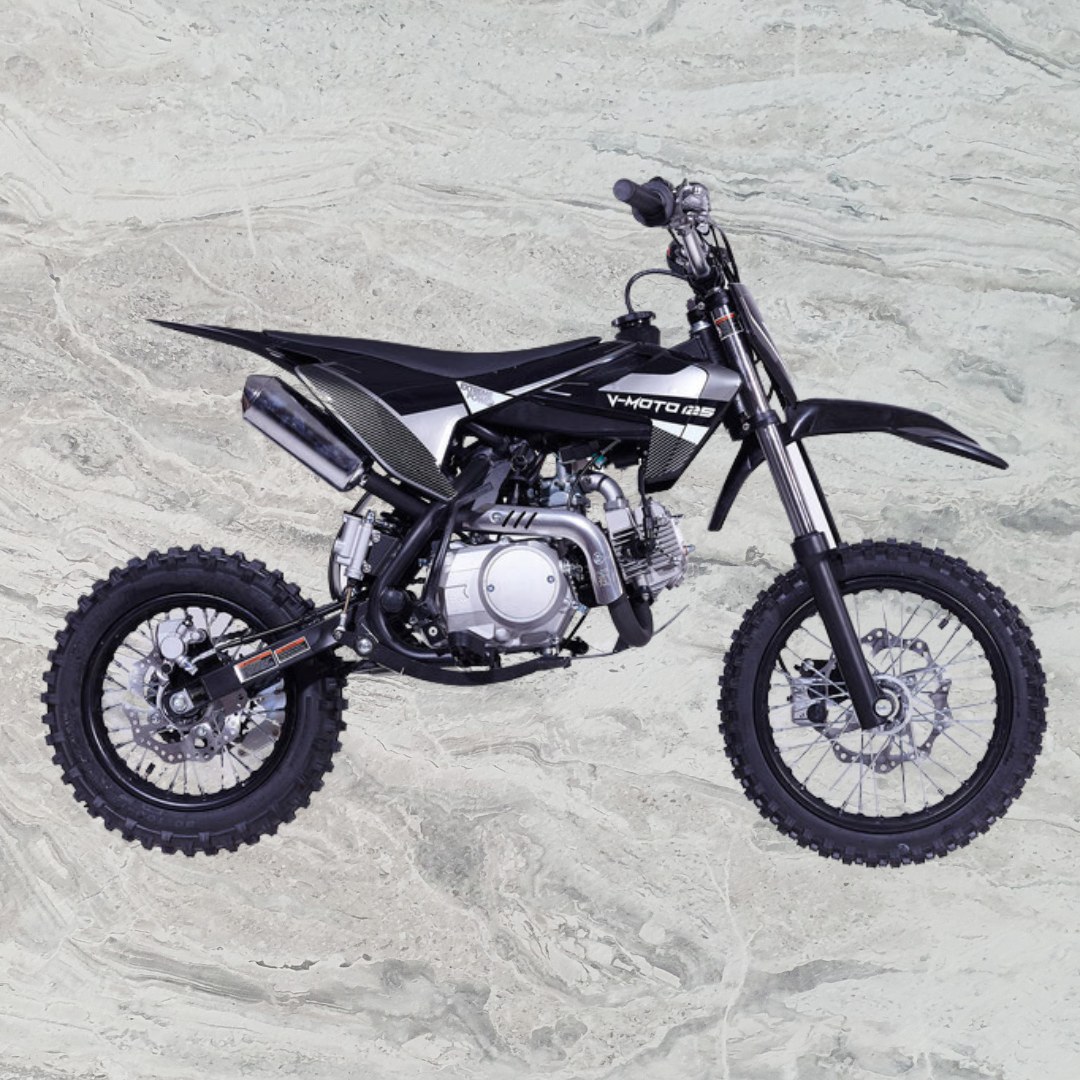

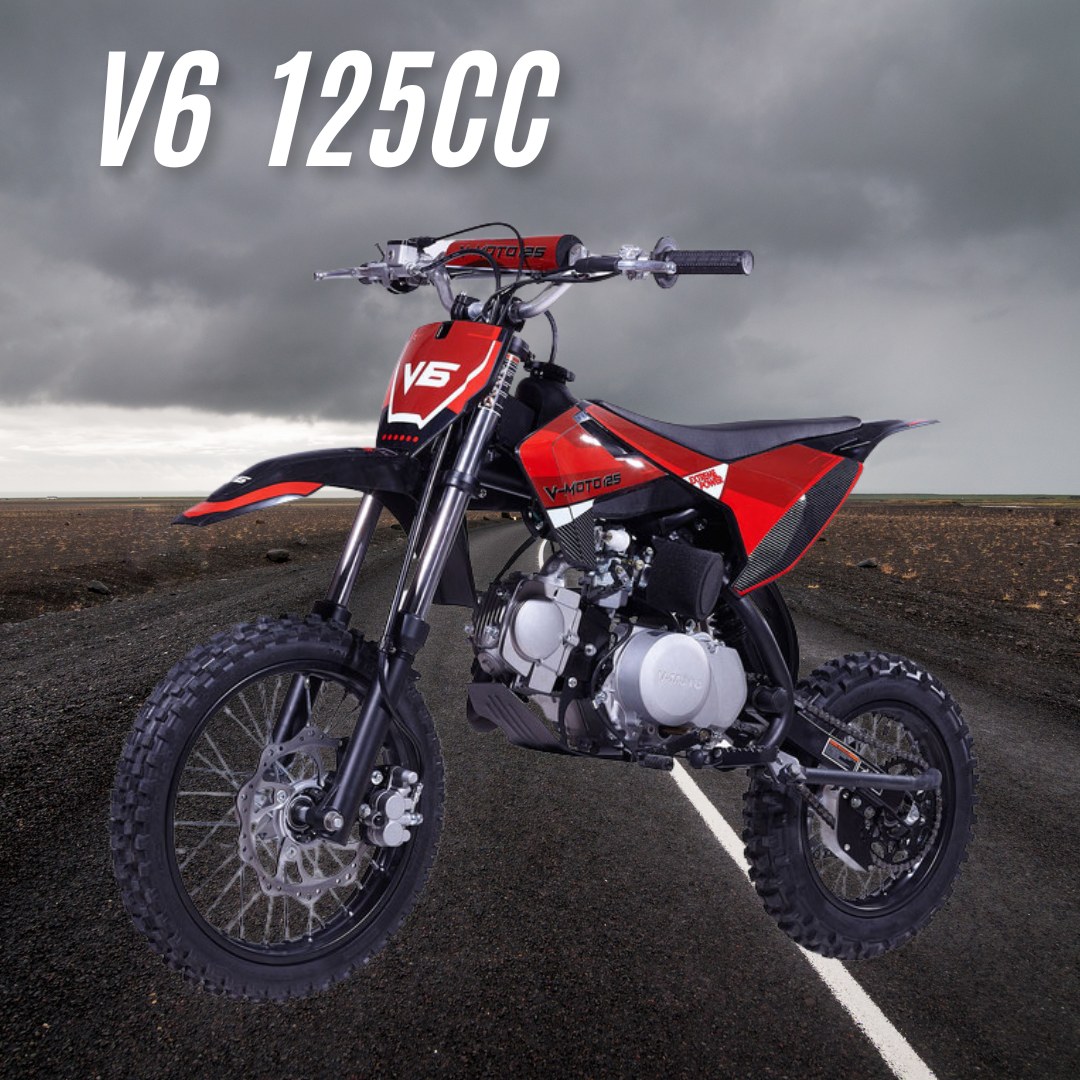

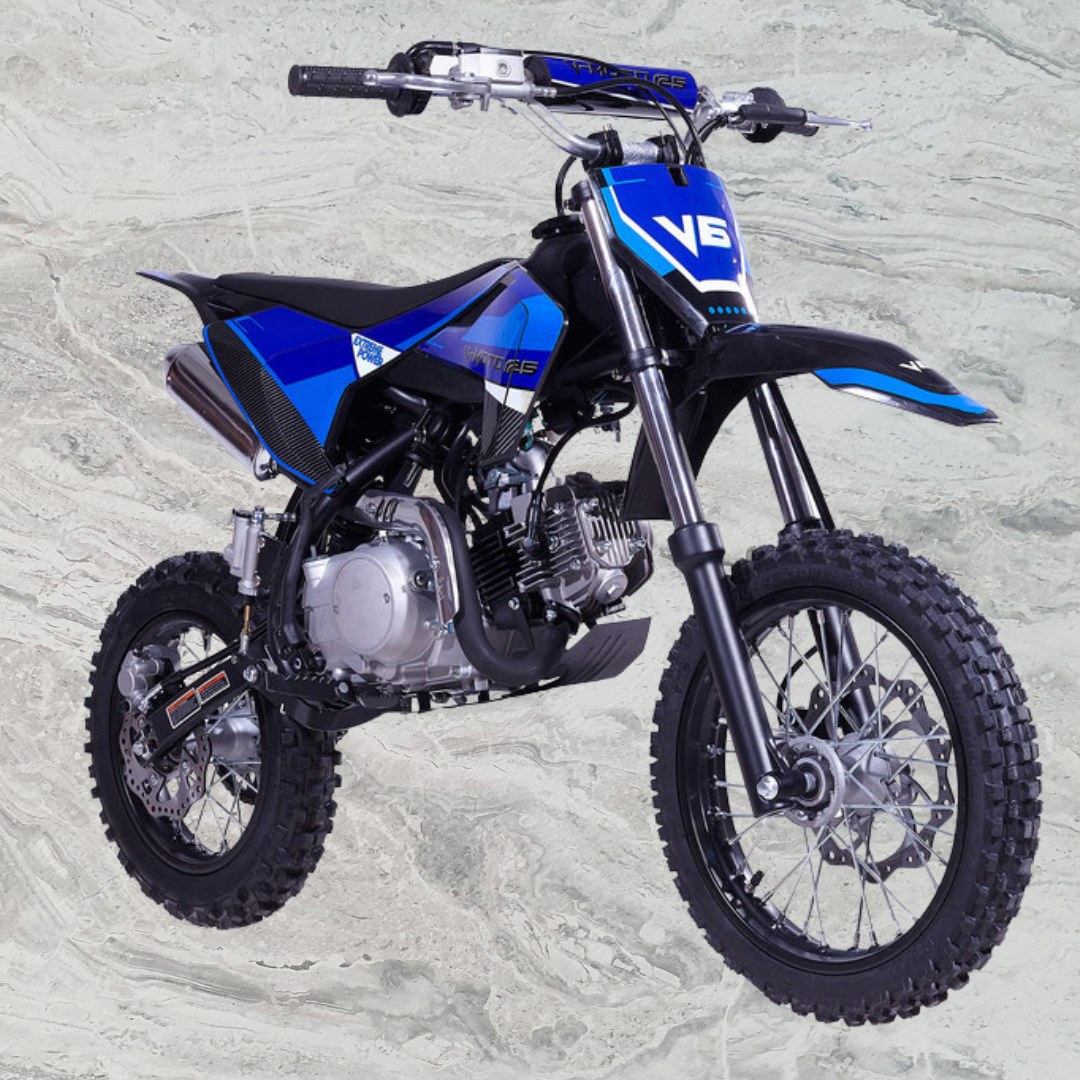

V6 125CC

Description

Engine System

Engine Type ZM125cc, Single Cylinder, 4-Stroke, Air Cooled

Displacement 124 ml

Max Power 6.2（1±10%）/7000（1±5%） kw/r/min

Max Torque 9.0(1±10%）/5000（1±5%） N.m/r/min

Compression Ratio 9.6:1

Shift Type 4 Speed Simi Automatic

Start Type Kick Start

Carburetor PZ26 Jingke Carburetor

Drive Train #428，14/41T

Size Data

L x W x H 64.1″ * 29.5″ * 41.3″

Wheel Base 42.3″

Tires FT: 60/100-14 – RR: 80/100-12

Seat Height 29.6″

Ground Clearance 13.5

Fuel Capacity 3.5 L

Frame/Suspension/Brake/Wheel system

Frame Cradle Type Steel Tube Frame

Front Fork

Non-Adjustable Inverted 700mm Forks, Travel – 4.3″

Rear Shock Coil Spring shock – 10.8″ , Travel – 1.6″

Swing-Arm Steel – 14.9″

Handle Bar Steel

Wheels Steel 1.6 x 17″ / 1.85 x 14″ Rims, Cast Hubs

Front Brake Single Piston Caliper, 210mm Disc

Rear Brake Single Piston Caliper, 190mm Disc

Exhaust Stainless Steel Header Pipe, Haxagon Aluminum Silencer

Packing and Loading

Packing Size 54.5″ * 14.7″ * 29.7″

N.W/KG 145.5 LBS

G.N/KG 172 LBS
