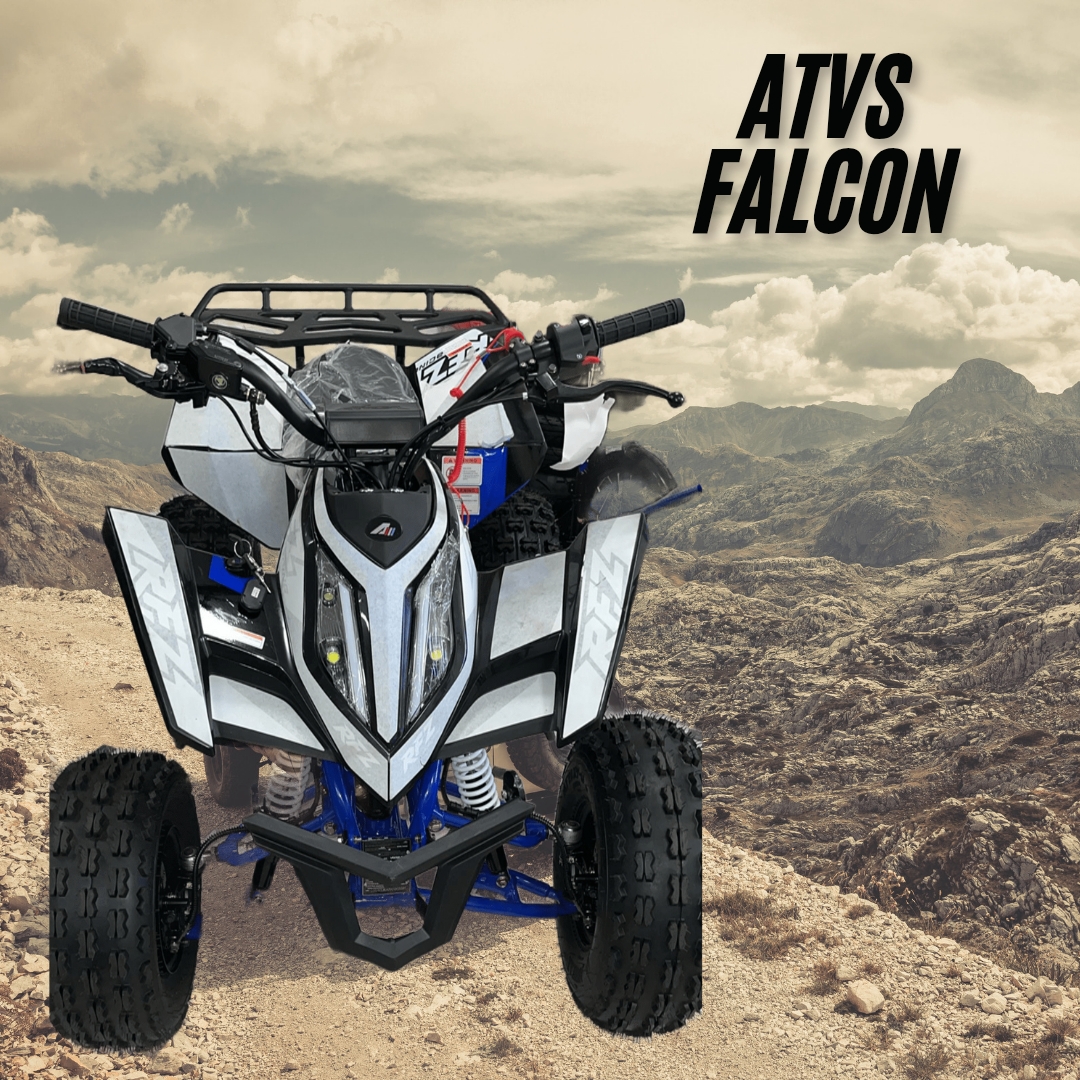

Falcon 125CC

Description

Whole vehicle parameter

Model name AGA-12A

Vehicle Class Y12+ class

Overall dimensions （L×W×H): 1495mm×970mm×1000mm

Wheel base 965mm

front wheel distance 795mm

rear wheel distance 680mm

ground clearance 125mm

Seat height 760mm

Curb weight 123kg

rated load mass 100kg

Max speed 55km/h

minimum turning radius 2500mm

maximum gradability 10°

front brake type front hydraulic brake

rear brake type rear hydraulic brake

brake operation

Front hydraulic brake by hande rear hydraulic brake by foot pedal



front rim steel

rear rim steel

front tire size 19×7-8

rear tire size 18×9.5-8

front tire air pressure 10P.S.I.

rear tire air pressure 10P.S.I.

transmission Chain

Package packing size 1310mm×760mm×660mm

Net weight 121kg

Gross weight 135.5kg

Engine parameter Transmission type Semi-automatic 1+R

Engine type 4 stroke,Single cylinder , air cooling

displacement 119.7cc

Bore×Stroke 52.4mmX55.5mm

Max power 5.5kW/7500rpm

Max torque 8.5N.m/5000rpm

ignition CDI

start electric start fuel grade RQ-93

Lubrication Pressure and splash lubrication

Engine oil grade SAE15W/40
